PCB design with Gerber files and BOM list

  2. PCB design with Gerber files and BOM list

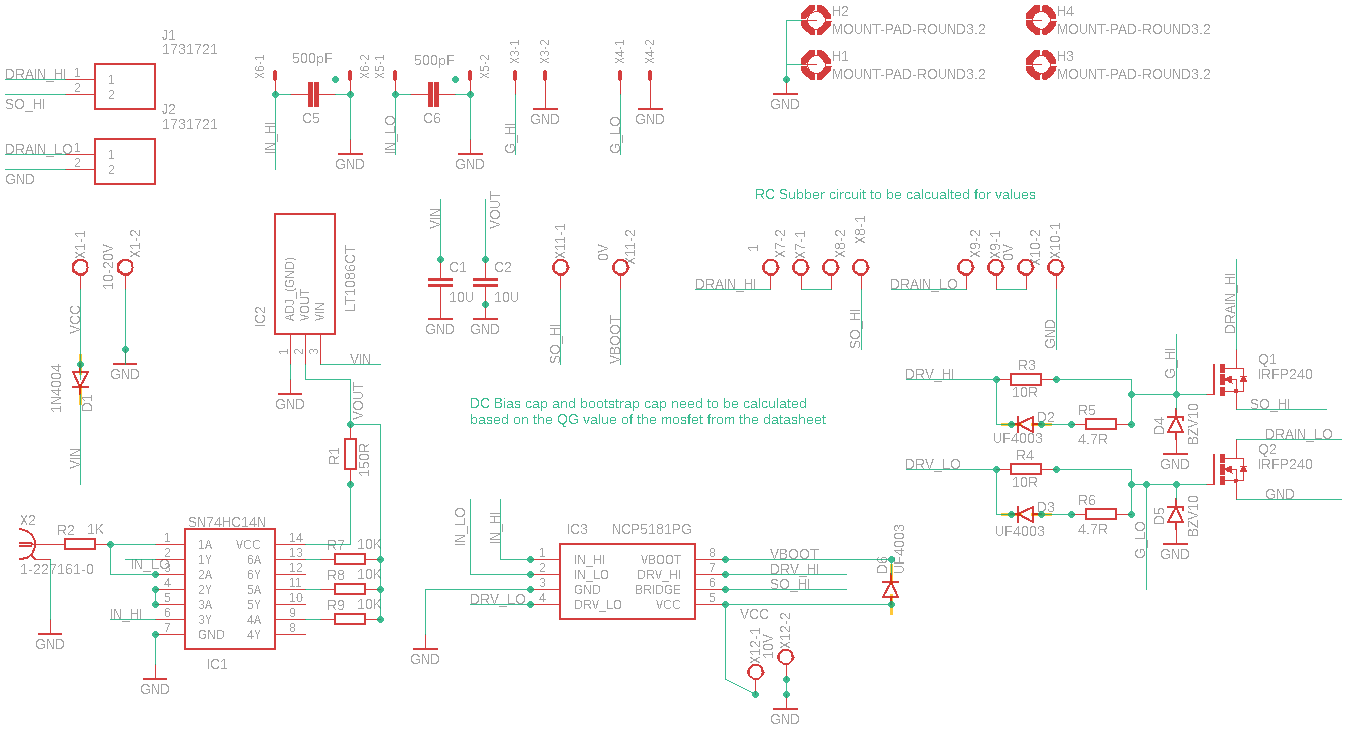

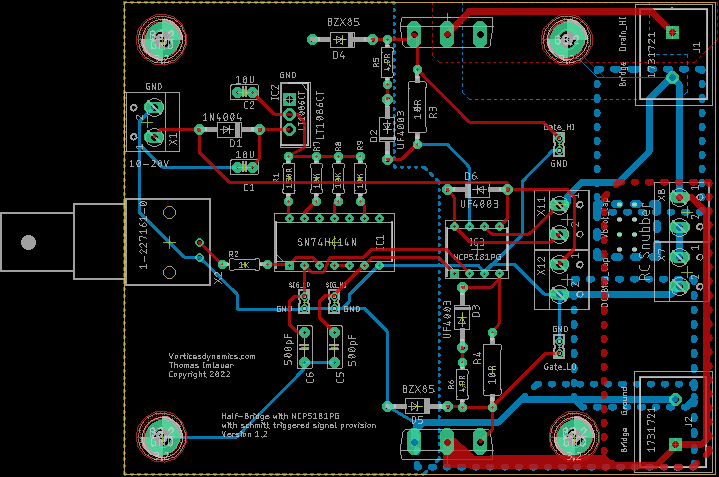

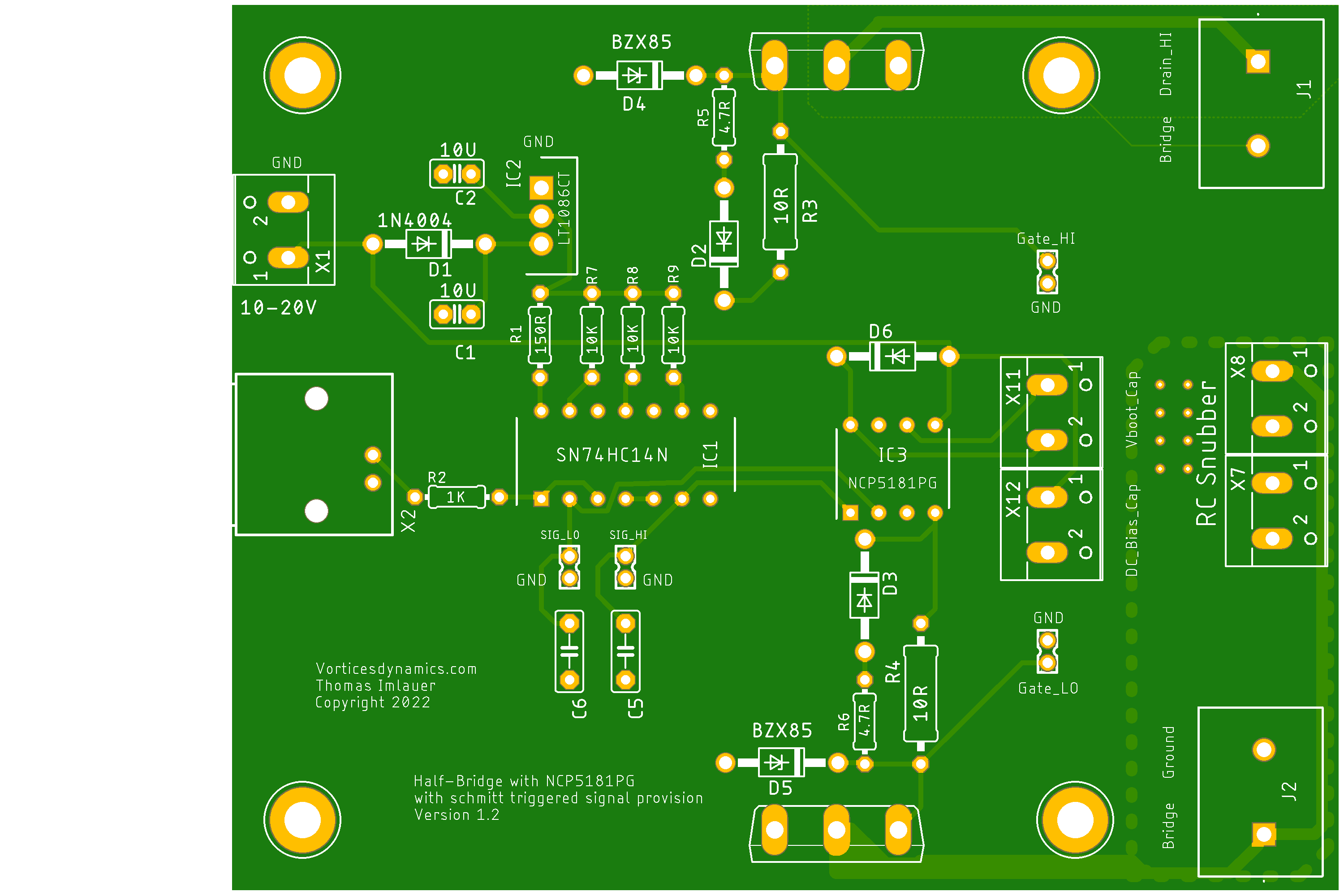

Half-Bridge with Schmitt trigger version 1.2

Board



Schematic



Printed Board



Gerber files

Bom list

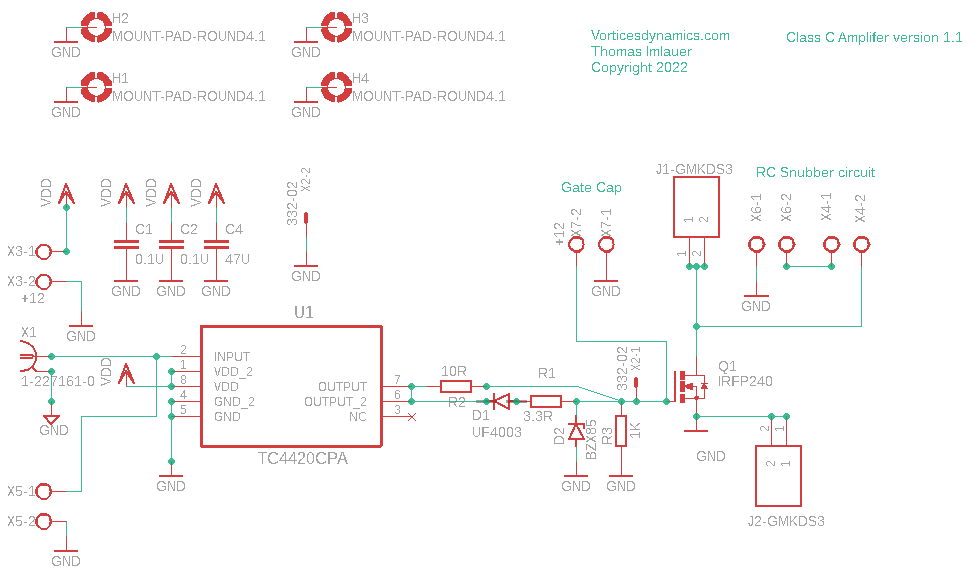

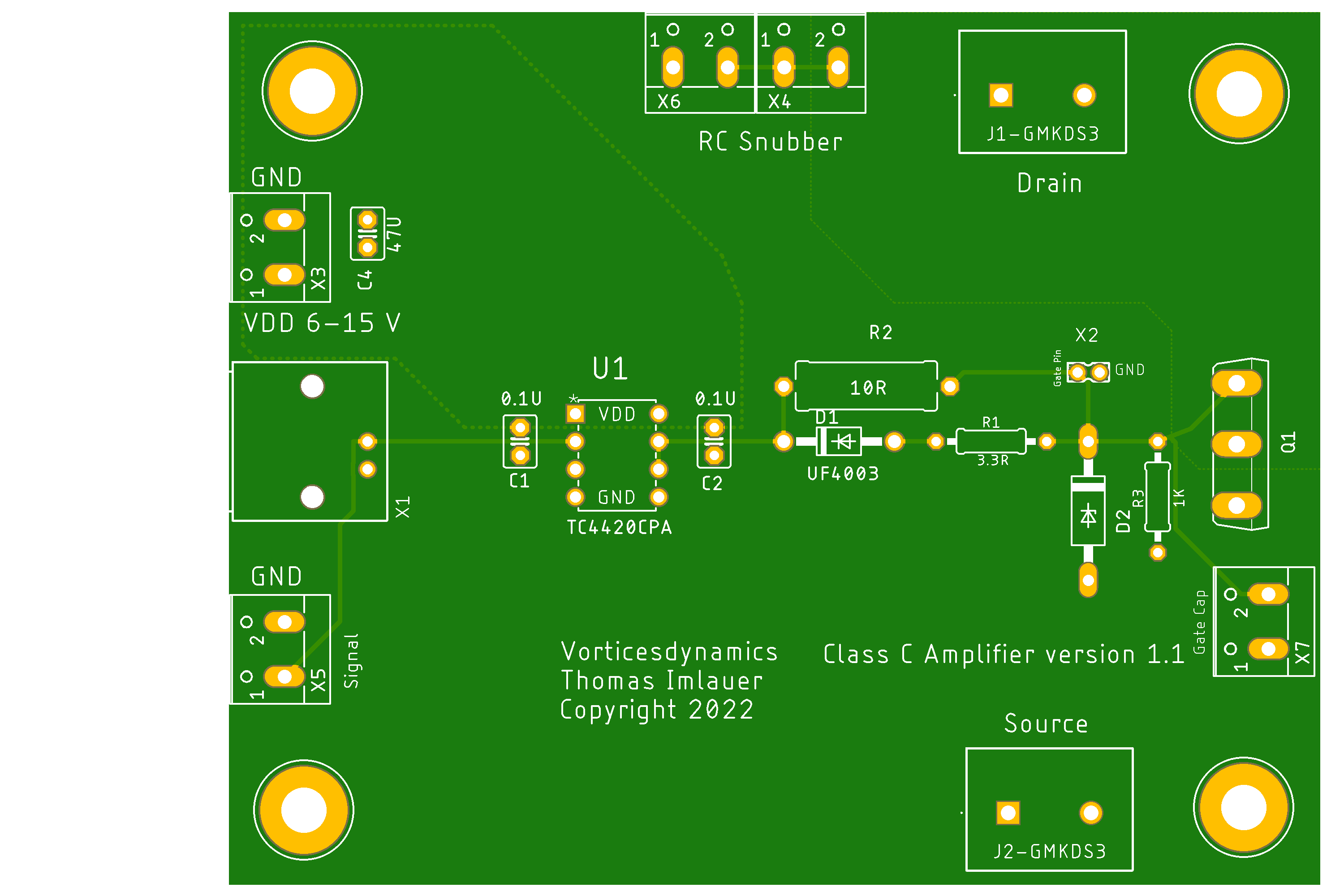

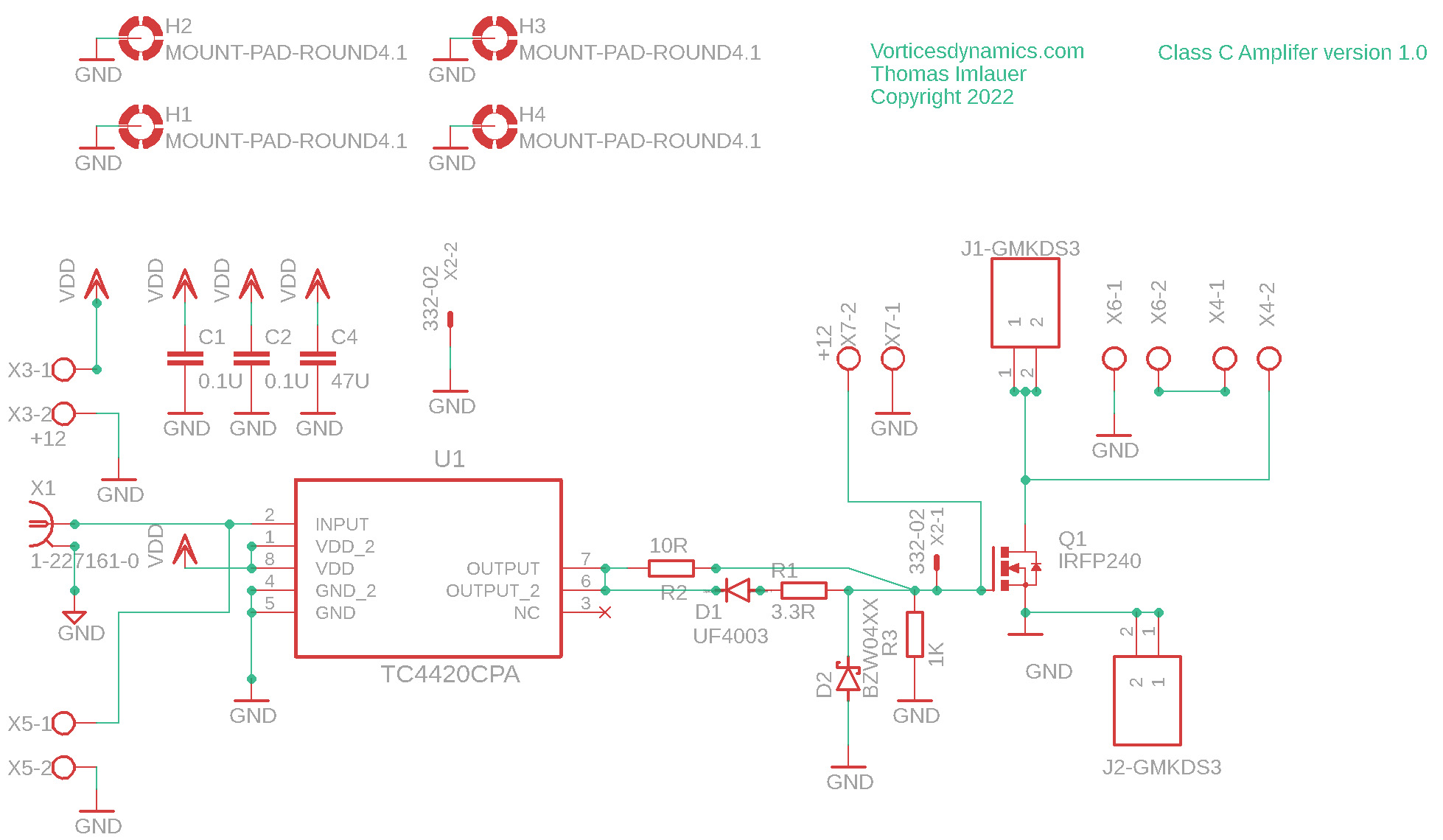

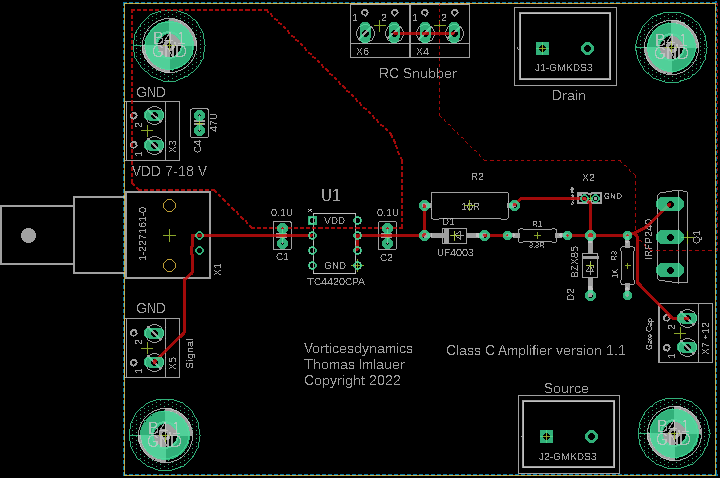

Class C amplifier with Driver version 1.1

Board

Schematics

Printer board



Gerber files

Bom list

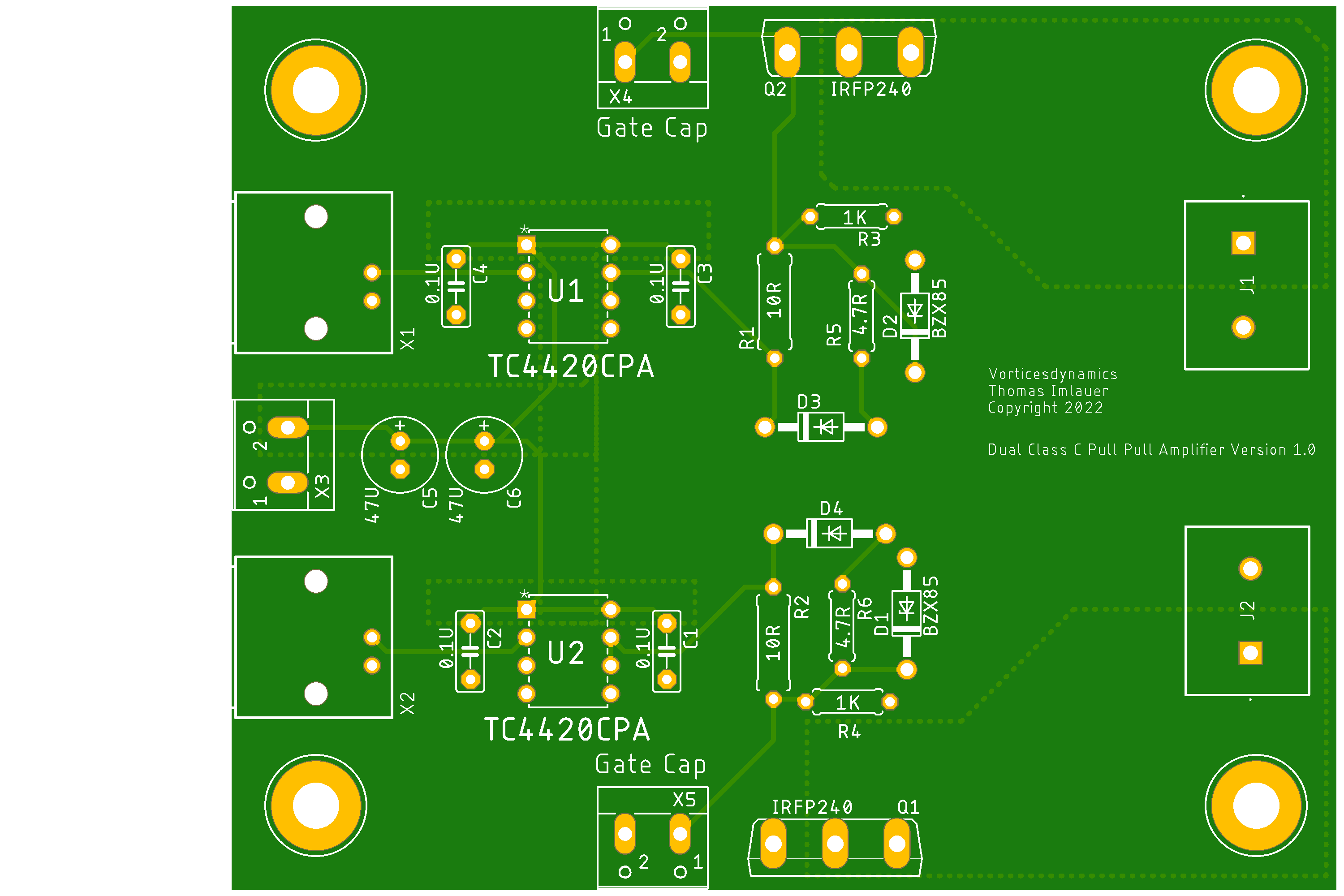

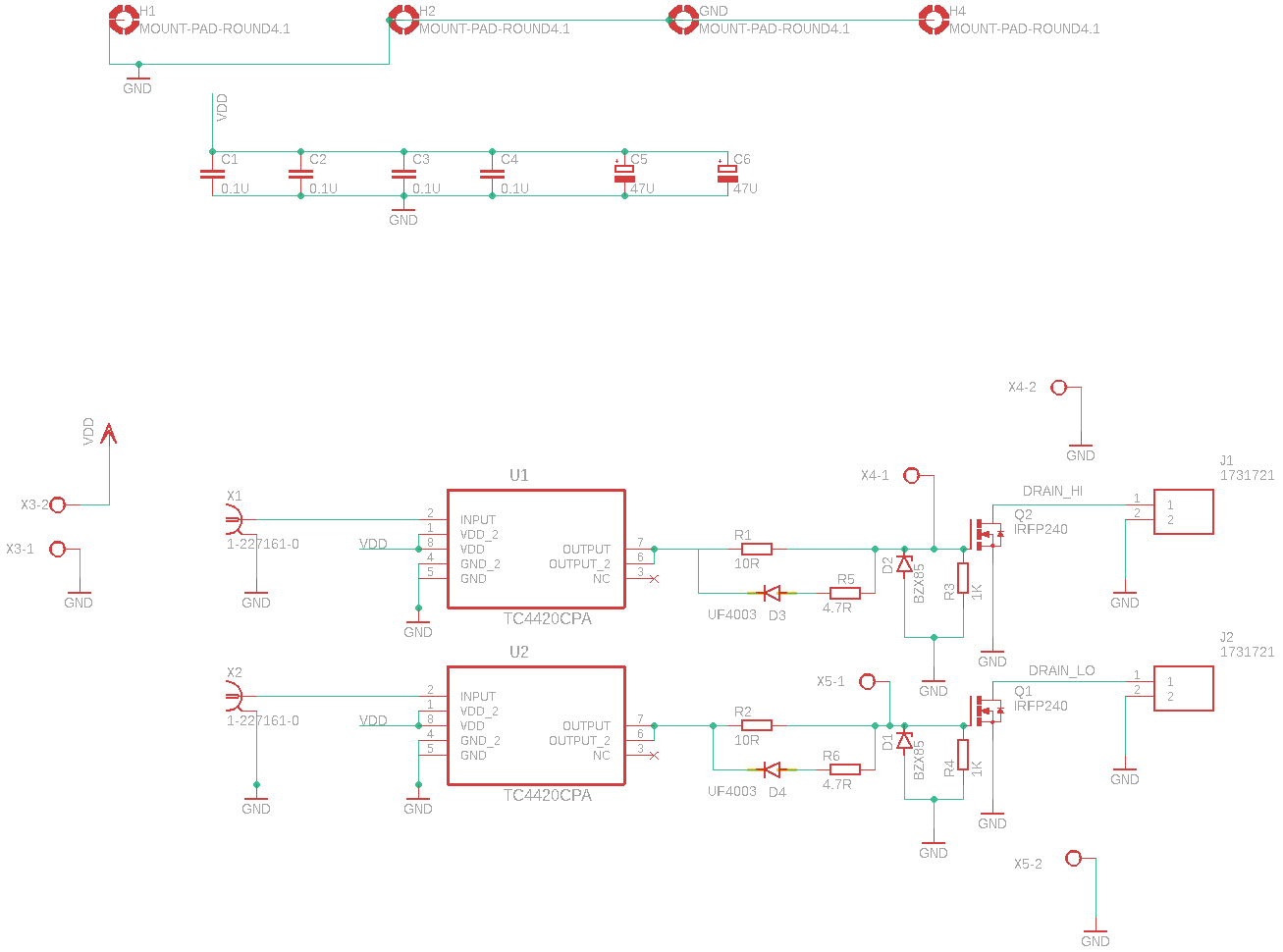

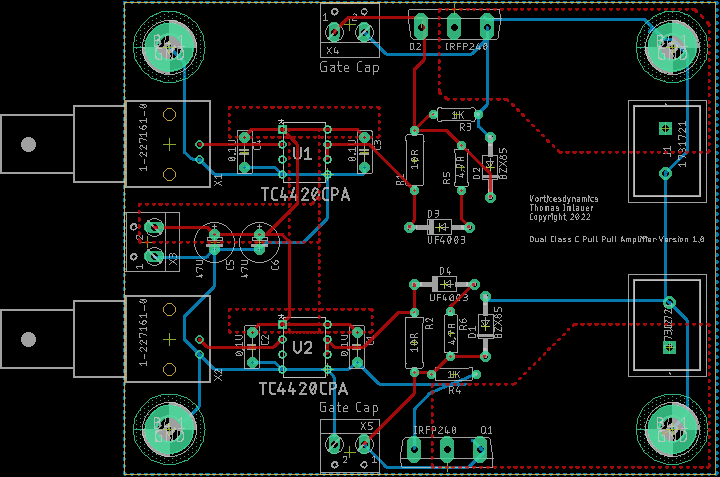

Dual Class C amplifier with Driver version 1.0

Board

Schematics

Printed Board

Gerber Files

BOM
